#include <caption-superimpose-1bytedrcs.h>

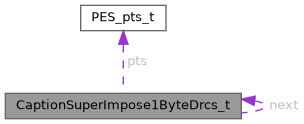

Data Fields | |
| uint16_t | character_code |
| uint8_t | font_id |
| uint8_t | mode |
| uint8_t | depth |
| uint8_t | width |
| uint8_t | height |
| uint8_t * | pixels |
| uint8_t | region_x |
| uint8_t | region_y |
| uint8_t * | geometric |
| uint16_t | geometric_len |
| const PES_pts_t * | pts |
| struct CaptionSuperImpose1ByteDrcs_t * | next |
Detailed Description
One font (typeface) of one DRCS character. A character sent with more than one font becomes more than one item, all with the same character_code.
Definition at line 40 of file caption-superimpose-1bytedrcs.h.
Field Documentation
◆ character_code
| uint16_t CaptionSuperImpose1ByteDrcs_t::character_code |
Code of the character. 1 byte DRCS: 0x41xx (DRCS-1) to 0x4Fxx (DRCS-15), the 2nd byte (0x21 to 0x7e) is the position in the set.
Definition at line 41 of file caption-superimpose-1bytedrcs.h.
◆ font_id
| uint8_t CaptionSuperImpose1ByteDrcs_t::font_id |
Typeface (0 to 15); 0 means "any".
Definition at line 43 of file caption-superimpose-1bytedrcs.h.
◆ mode
| uint8_t CaptionSuperImpose1ByteDrcs_t::mode |
Transmission mode, see CAPTION_DRCS_MODE_2_GRADATION and the next ones.
Definition at line 44 of file caption-superimpose-1bytedrcs.h.
◆ depth
| uint8_t CaptionSuperImpose1ByteDrcs_t::depth |
Number of gradations minus 2 (0: 2 gradations). Only modes 0 and 1.
Definition at line 46 of file caption-superimpose-1bytedrcs.h.
◆ width
| uint8_t CaptionSuperImpose1ByteDrcs_t::width |
Width of the pattern, in pixels. Only modes 0 and 1.
Definition at line 47 of file caption-superimpose-1bytedrcs.h.
◆ height
| uint8_t CaptionSuperImpose1ByteDrcs_t::height |
Height of the pattern, in pixels. Only modes 0 and 1.
Definition at line 48 of file caption-superimpose-1bytedrcs.h.
◆ pixels
| uint8_t* CaptionSuperImpose1ByteDrcs_t::pixels |
width x height pixels, one byte each, left to right and top to bottom. 0 is the background, depth + 1 is the foreground. NULL in modes 2 and 3, or when the pattern is empty.
Definition at line 49 of file caption-superimpose-1bytedrcs.h.
◆ region_x
| uint8_t CaptionSuperImpose1ByteDrcs_t::region_x |
Logical area (1/256 unit) used by the geometric data. Only modes 2 and 3.
Definition at line 53 of file caption-superimpose-1bytedrcs.h.
◆ region_y
| uint8_t CaptionSuperImpose1ByteDrcs_t::region_y |
Idem.
Definition at line 54 of file caption-superimpose-1bytedrcs.h.
◆ geometric
| uint8_t* CaptionSuperImpose1ByteDrcs_t::geometric |
Geometric data, as it came (see caption-superimpose-geometric.h). NULL when there is none. Only modes 2 and 3.
Definition at line 55 of file caption-superimpose-1bytedrcs.h.
◆ geometric_len
| uint16_t CaptionSuperImpose1ByteDrcs_t::geometric_len |
Size of geometric.
Definition at line 57 of file caption-superimpose-1bytedrcs.h.
◆ pts
| const PES_pts_t* CaptionSuperImpose1ByteDrcs_t::pts |
Points to PacketPES_t::pts; valid while the PacketPES_t exists.
Definition at line 59 of file caption-superimpose-1bytedrcs.h.
◆ next
| struct CaptionSuperImpose1ByteDrcs_t* CaptionSuperImpose1ByteDrcs_t::next |
Next item of the list, or NULL.
Definition at line 60 of file caption-superimpose-1bytedrcs.h.
The documentation for this struct was generated from the following file:
- include/closedcaption/caption-superimpose-1bytedrcs.h
