1-byte DRCS (characters drawn by the broadcaster) data unit. More...

#include "caption-common.h"
#include "caption-data.h"
#include "caption-management.h"

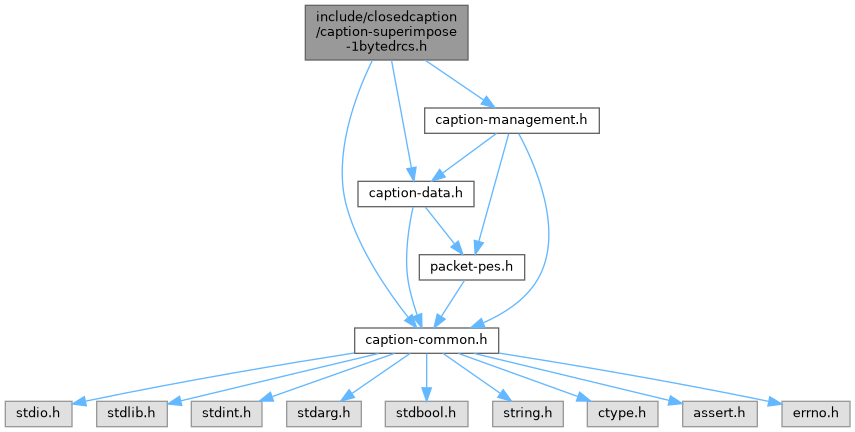

Include dependency graph for caption-superimpose-1bytedrcs.h:

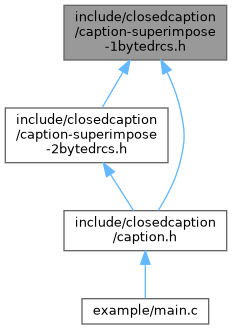

This graph shows which files directly or indirectly include this file:

Data Structures
struct	CaptionSuperImpose1ByteDrcs_t

Macros
#define	CAPTION_DRCS_MODE_2_GRADATION 0x00

#define	CAPTION_DRCS_MODE_MULTI_GRAD 0x01

#define	CAPTION_DRCS_MODE_2_COLOR_GEO 0x02

#define	CAPTION_DRCS_MODE_MULTI_COLOR 0x03

Typedefs
typedef struct CaptionSuperImpose1ByteDrcs_t	CaptionSuperImpose1ByteDrcs_t

Functions
CaptionSuperImpose1ByteDrcs_t *	caption_superimpose_1bytedrcs_new (const CaptionManagement_t *m)

void	caption_superimpose_1bytedrcs_free (CaptionSuperImpose1ByteDrcs_t *cc)

Detailed Description

1-byte DRCS (characters drawn by the broadcaster) data unit.

Author: Jorge Pereira jpere.nosp@m.iran.nosp@m.@gmai.nosp@m.l.co.nosp@m.m

Date: Thu Aug 12 13:49:21 BRT 2010

Reads the data units of type CAPTION_HANDLER_TYPE_1BYTE_DRCS, following the "DRCS structure syntax" (ARIB STD-B24, Volume 1, Part 2, Annex D). Each character/font sent in the data unit becomes one item of the list.

Example (prints the glyphs as ASCII art):

CaptionSuperImpose1ByteDrcs_t *d = caption_superimpose_1bytedrcs_new (&mgmt), *i;

for (i = d; i != NULL; i = i->next)
  if (i->pixels != NULL)
    for (y = 0; y < i->height; y++, putchar ('\n'))
      for (x = 0; x < i->width; x++)
        putchar (i->pixels[y * i->width + x] ? '#' : '.');

caption_superimpose_1bytedrcs_free (d);

Definition in file caption-superimpose-1bytedrcs.h.

Macro Definition Documentation

◆ CAPTION_DRCS_MODE_2_GRADATION

#define CAPTION_DRCS_MODE_2_GRADATION 0x00

2 gradations, no compression: pixels is filled.

Definition at line 31 of file caption-superimpose-1bytedrcs.h.

◆ CAPTION_DRCS_MODE_MULTI_GRAD

#define CAPTION_DRCS_MODE_MULTI_GRAD 0x01

Several gradations, no compression: pixels is filled.

Definition at line 32 of file caption-superimpose-1bytedrcs.h.

◆ CAPTION_DRCS_MODE_2_COLOR_GEO

#define CAPTION_DRCS_MODE_2_COLOR_GEO 0x02

Geometric data (2 colors): geometric is filled.

Definition at line 33 of file caption-superimpose-1bytedrcs.h.

◆ CAPTION_DRCS_MODE_MULTI_COLOR

#define CAPTION_DRCS_MODE_MULTI_COLOR 0x03

Geometric data (multi-color): geometric is filled.

Definition at line 34 of file caption-superimpose-1bytedrcs.h.

Typedef Documentation

◆ CaptionSuperImpose1ByteDrcs_t

typedef struct CaptionSuperImpose1ByteDrcs_t CaptionSuperImpose1ByteDrcs_t

One font (typeface) of one DRCS character. A character sent with more than one font becomes more than one item, all with the same character_code.

Function Documentation

◆ caption_superimpose_1bytedrcs_new()

CaptionSuperImpose1ByteDrcs_t * caption_superimpose_1bytedrcs_new ( const CaptionManagement_t * m )

Creates the list from a 1-byte DRCS (characters drawn by the broadcaster) data unit.

Parameters

m	Content read by caption_management_load() or caption_management_load_unit(), of type CAPTION_HANDLER_TYPE_1BYTE_DRCS, with a non-empty data unit.

Returns: The list, or NULL if out of memory, if the data unit has no character or if it is truncated/invalid. Free with caption_superimpose_1bytedrcs_free().

◆ caption_superimpose_1bytedrcs_free()

void caption_superimpose_1bytedrcs_free ( CaptionSuperImpose1ByteDrcs_t * cc )

Frees the list created by caption_superimpose_1bytedrcs_new(), including all the items chained in next.
