Superimpose captions. More...

#include "caption-common.h"
#include "caption-data.h"

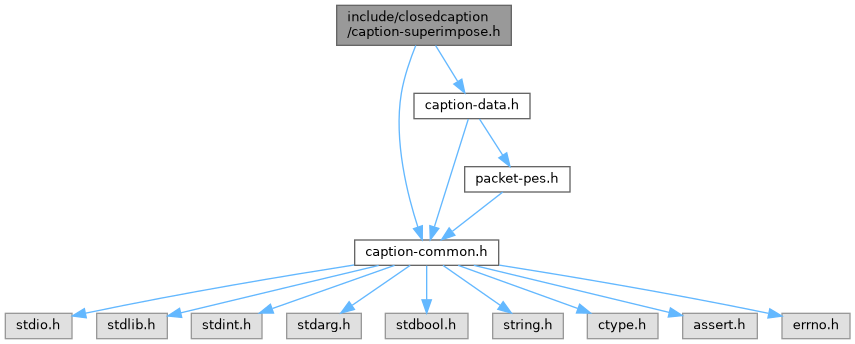

Include dependency graph for caption-superimpose.h:

This graph shows which files directly or indirectly include this file:

Data Structures
struct	CaptionSuperImpose_s

Typedefs
typedef struct CaptionSuperImpose_s	CaptionSuperImpose_t

Functions
CaptionSuperImpose_t *	caption_superimpose_new (const CaptionData_t *caption)

void	caption_superimpose_free (CaptionSuperImpose_t *csi)

Detailed Description

Superimpose captions.

Author: Jorge Pereira jpere.nosp@m.iran.nosp@m.@gmai.nosp@m.l.co.nosp@m.m

Date: Thu Aug 12 13:49:21 BRT 2010

Superimpose are the messages overlaid on the video that are not part of the program caption (broadcaster notices, alerts). They use the same data_group format as the caption (ARIB STD-B24, Volume 1, Part 3, Chapter 9), but on their own PID (component_tag 0x38 to 0x3f).

Each text data unit (CAPTION_HANDLER_TYPE_STATEMENT_BODY) of the data group becomes one message, with the text converted to UTF-8 like caption_closed_run() does.

Note: While it runs, caption_superimpose_new() replaces the global hooks of caption-hooking.h and puts the previous ones back before returning.

Definition in file caption-superimpose.h.

Typedef Documentation

◆ CaptionSuperImpose_t

typedef struct CaptionSuperImpose_s CaptionSuperImpose_t

Superimpose message. See CaptionSuperImpose_s.

Definition at line 25 of file caption-superimpose.h.

Function Documentation

◆ caption_superimpose_new()

CaptionSuperImpose_t * caption_superimpose_new ( const CaptionData_t * caption )

Creates the struct from a superimpose data_group.

Parameters

caption data_group loaded by caption_data_load(), not empty.

Returns: The first message (the others are chained in next), or NULL if out of memory, if the data group is invalid or if it has no text. Free with caption_superimpose_free().

◆ caption_superimpose_free()

void caption_superimpose_free ( CaptionSuperImpose_t * csi )

Frees the struct created by caption_superimpose_new(), including all the messages chained in next.
