Interpreting the caption (closed caption) text and its state: colors, character size, position and display format. More...

#include "caption-common.h"
#include "caption-data.h"
#include "caption-management.h"

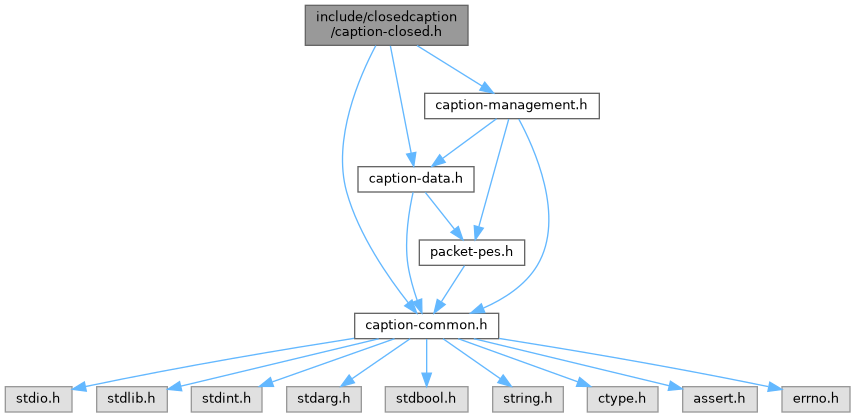

Include dependency graph for caption-closed.h:

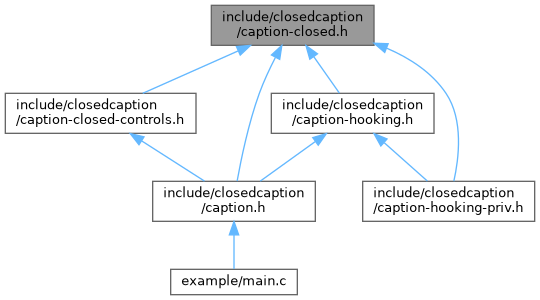

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	CC_Dimension_t

struct	CC_Color_t

struct	CaptionClosed_t

struct	CaptionClosed_t::APS

Macros
#define	CC_Dimension_is_equal(dimen1, dimen2) ((dimen1).width == (dimen2).width && (dimen1).height == (dimen2).height)

#define	CC_Color_is_equal(color1, color2)

Enumerations
enum	CC_CharacterSize_t { CC_CharacterSize_Small = 0x01 , CC_CharacterSize_Middle = 0x02 , CC_CharacterSize_Standard = 0x03 , CC_CharacterSize_t_eMax = 0x04 , CC_CharacterSize_Custom = 0x05 , CC_CharacterSize_UNKNOWN = 0xff }

enum	CC_Format_t { CC_Format_HOR_STAN_DENSITY = 0x00 , CC_Format_VER_STAN_DENSITY = 0x01 , CC_Format_HOR_HIGH_DENSITY = 0x02 , CC_Format_VER_HIGH_DENSITY = 0x03 , CC_Format_HOR_WEST_LANG = 0x04 , CC_Format_HOR_1920x1080 = 0x05 , CC_Format_VER_1920x1080 = 0x06 , CC_Format_HOR_960x540 = 0x07 , CC_Format_VER_960x540 = 0x08 , CC_Format_HOR_720x480 = 0x09 , CC_Format_VER_720x480 = 0x0a , CC_Format_HOR_1280x720 = 0x0b , CC_Format_VER_1280x720 = 0x0c , CC_Format_t_eMax = 0x0d }

enum	CC_Rcs_t { CC_Rcs_BLACK = 0 , CC_Rcs_FULL_INTENSITY_RED = 1 , CC_Rcs_FULL_INTENSITY_GREEN = 2 , CC_Rcs_FULL_INTENSITY_YELLOW = 3 , CC_Rcs_FULL_INTENSITY_BLUE = 4 , CC_Rcs_FULL_INTENSITY_MAGNETA = 5 , CC_Rcs_FULL_INTENSITY_CYAN = 6 , CC_Rcs_FULL_INTENSITY_WHITE = 7 , CC_Rcs_TRANSPARENT = 8 , Cc_Rcs_HALF_INTENSITY_RED = 9 , Cc_Rcs_HALF_INTENSITY_GREEN = 10 , Cc_Rcs_HALF_INTENSITY_YELLOW = 11 , Cc_Rcs_HALF_INTENSITY_BLUE = 12 , Cc_Rcs_HALF_INTENSITY_MAGNETA = 13 , Cc_Rcs_HALF_INTENSITY_CYAN = 14 , Cc_Rcs_HALF_INTENSITY_WHITE = 15 , CC_Rcs_t_eMax = 16 }

Functions
bool	caption_closed_run (const CaptionManagement_t m, CaptionClosed_t cc)

uint8_t	char_latin9_to_utf8 (const char const from, char const to, uint8_t to_len)

Detailed Description

Interpreting the caption (closed caption) text and its state: colors, character size, position and display format.

Author: Jorge Pereira jpere.nosp@m.iran.nosp@m.@gmai.nosp@m.l.co.nosp@m.m

Date: Thu Aug 12 13:49:21 BRT 2010

caption_closed_run() walks the statement body (text + control commands) and:

converts each ISO-8859-15 character to UTF-8 and hands it to the text hook (see caption-hooking.h);
runs each C0/C1 command (see caption-closed-controls.h), updates the CaptionClosed_t and calls the controls hook.

Definition in file caption-closed.h.

Macro Definition Documentation

◆ CC_Dimension_is_equal

#define CC_Dimension_is_equal	(	dimen1,
		dimen2
	)	((dimen1).width == (dimen2).width && (dimen1).height == (dimen2).height)

Compares two CC_Dimension_t.

Definition at line 65 of file caption-closed.h.

◆ CC_Color_is_equal

#define CC_Color_is_equal	(	color1,
		color2
	)

Value:

((color1).r == (color2).r && (color1).g == (color2).g && \

(color1).b == (color2).b && (color1).a == (color2).a)

Compares two CC_Color_t.

Definition at line 79 of file caption-closed.h.

Enumeration Type Documentation

◆ CC_CharacterSize_t

enum CC_CharacterSize_t

Character size (SSZ, MSZ, NSZ and SZX commands).

Enumerator
CC_CharacterSize_Small	Small (SSZ).
CC_CharacterSize_Middle	Medium (MSZ).
CC_CharacterSize_Standard	Normal (NSZ).
CC_CharacterSize_t_eMax	Limit of the values above.
CC_CharacterSize_Custom	Size given by SZX; the value is in CaptionClosed_t::char_size_custom.
CC_CharacterSize_UNKNOWN	Unknown.

Definition at line 26 of file caption-closed.h.

◆ CC_Format_t

enum CC_Format_t

Display format (ARIB STD-B24, Table 9-7; CSI SWF command).

Enumerator
CC_Format_HOR_STAN_DENSITY	Horizontal, standard density.
CC_Format_VER_STAN_DENSITY	Vertical, standard density.
CC_Format_HOR_HIGH_DENSITY	Horizontal, high density.
CC_Format_VER_HIGH_DENSITY	Vertical, high density.
CC_Format_HOR_WEST_LANG	Horizontal, western languages.
CC_Format_HOR_1920x1080	Horizontal, 1920x1080.
CC_Format_VER_1920x1080	Vertical, 1920x1080.
CC_Format_HOR_960x540	Horizontal, 960x540.
CC_Format_VER_960x540	Vertical, 960x540.
CC_Format_HOR_720x480	Horizontal, 720x480.
CC_Format_VER_720x480	Vertical, 720x480.
CC_Format_HOR_1280x720	Horizontal, 1280x720.
CC_Format_VER_1280x720	Vertical, 1280x720.
CC_Format_t_eMax	Number of formats.

Definition at line 39 of file caption-closed.h.

◆ CC_Rcs_t

enum CC_Rcs_t

Raster color (CSI RCS command, Raster Colour Command).

Enumerator
CC_Rcs_BLACK	Black.
CC_Rcs_FULL_INTENSITY_RED	Red.
CC_Rcs_FULL_INTENSITY_GREEN	Green.
CC_Rcs_FULL_INTENSITY_YELLOW	Yellow.
CC_Rcs_FULL_INTENSITY_BLUE	Blue.
CC_Rcs_FULL_INTENSITY_MAGNETA	Magenta.
CC_Rcs_FULL_INTENSITY_CYAN	Cyan.
CC_Rcs_FULL_INTENSITY_WHITE	White.
CC_Rcs_TRANSPARENT	Transparent.
Cc_Rcs_HALF_INTENSITY_RED	Red, half intensity.
Cc_Rcs_HALF_INTENSITY_GREEN	Green, half intensity.
Cc_Rcs_HALF_INTENSITY_YELLOW	Yellow, half intensity.
Cc_Rcs_HALF_INTENSITY_BLUE	Blue, half intensity.
Cc_Rcs_HALF_INTENSITY_MAGNETA	Magenta, half intensity.
Cc_Rcs_HALF_INTENSITY_CYAN	Cyan, half intensity.
Cc_Rcs_HALF_INTENSITY_WHITE	White, half intensity.
CC_Rcs_t_eMax	Number of colors.

Definition at line 86 of file caption-closed.h.

Function Documentation

◆ caption_closed_run()

bool caption_closed_run	(	const CaptionManagement_t *	m,
		CaptionClosed_t *	cc
	)

Processes the caption text.

Walks the statement body of m, handing each character (in UTF-8) to the text hook and running each control command (which updates cc and calls the controls hook). See caption-hooking.h.

Characters outside ISO-8859-15 and commands not supported in closed caption are ignored, along with their parameters.

Parameters

m	Content of type CAPTION_HANDLER_TYPE_STATEMENT_BODY, read by caption_management_load().
cc	Caption state, kept between calls.

Returns: TRUE.

◆ char_latin9_to_utf8()

uint8_t char_latin9_to_utf8	(	const char *const	from,
		char *const	to,
		uint8_t	to_len
	)

Converts an ISO-8859-15 (Latin-9) character to UTF-8.
