CaptionSuperImposeGeometric_t Struct Reference

#include <caption-superimpose-geometric.h>

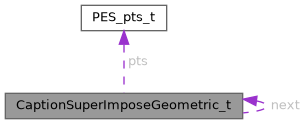

Collaboration diagram for CaptionSuperImposeGeometric_t:

Data Fields
uint8_t	opcode
uint8_t *	operands
size_t	operands_len
const PES_pts_t *	pts
struct CaptionSuperImposeGeometric_t *	next

Detailed Description

One graphics display command.

Definition at line 31 of file caption-superimpose-geometric.h.

Field Documentation

opcode

uint8_t CaptionSuperImposeGeometric_t::opcode

Opcode (0x20 to 0x3f). The low bits tell the variant (absolute/relative, outlined/filled, set-and-draw).

Definition at line 32 of file caption-superimpose-geometric.h.

operands

uint8_t* CaptionSuperImposeGeometric_t::operands

Operand bytes (0x40 to 0x7f); NULL if there is none.

Definition at line 34 of file caption-superimpose-geometric.h.

operands_len

size_t CaptionSuperImposeGeometric_t::operands_len

Size of operands.

Definition at line 35 of file caption-superimpose-geometric.h.

pts

const PES_pts_t* CaptionSuperImposeGeometric_t::pts

Points to PacketPES_t::pts; valid while the PacketPES_t exists.

Definition at line 37 of file caption-superimpose-geometric.h.

next

struct CaptionSuperImposeGeometric_t* CaptionSuperImposeGeometric_t::next

Next command of the list, or NULL.

Definition at line 38 of file caption-superimpose-geometric.h.

---

The documentation for this struct was generated from the following file:

• include/closedcaption/caption-superimpose-geometric.h
