CaptionSuperImposeColormap_t Struct Reference

#include <caption-superimpose-colormap.h>

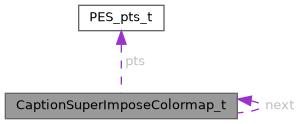

Collaboration diagram for CaptionSuperImposeColormap_t:

Data Fields
char *	var1
uint8_t	var2
const PES_pts_t *	pts
struct CaptionSuperImposeColormap_t *	next

Detailed Description

Color map data unit. The var1 and var2 fields are temporary.

Definition at line 22 of file caption-superimpose-colormap.h.

Field Documentation

var1

char* CaptionSuperImposeColormap_t::var1

Temporary: freed by caption_superimpose_colormap_free().

Definition at line 23 of file caption-superimpose-colormap.h.

var2

uint8_t CaptionSuperImposeColormap_t::var2

Temporary.

Definition at line 24 of file caption-superimpose-colormap.h.

pts

const PES_pts_t* CaptionSuperImposeColormap_t::pts

Points to PacketPES_t::pts; valid while the PacketPES_t exists.

Definition at line 26 of file caption-superimpose-colormap.h.

next

struct CaptionSuperImposeColormap_t* CaptionSuperImposeColormap_t::next

Next item of the list, or NULL.

Definition at line 27 of file caption-superimpose-colormap.h.

---

The documentation for this struct was generated from the following file:

• include/closedcaption/caption-superimpose-colormap.h
