Reading the header of a caption PES packet. More...

#include "caption-common.h"

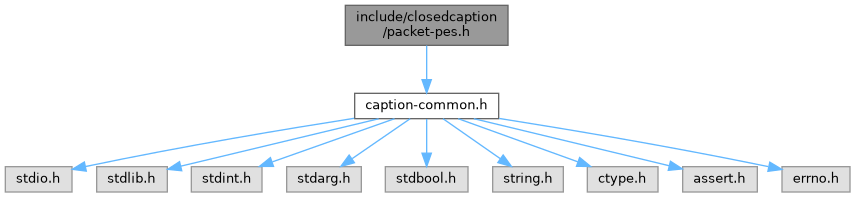

Include dependency graph for packet-pes.h:

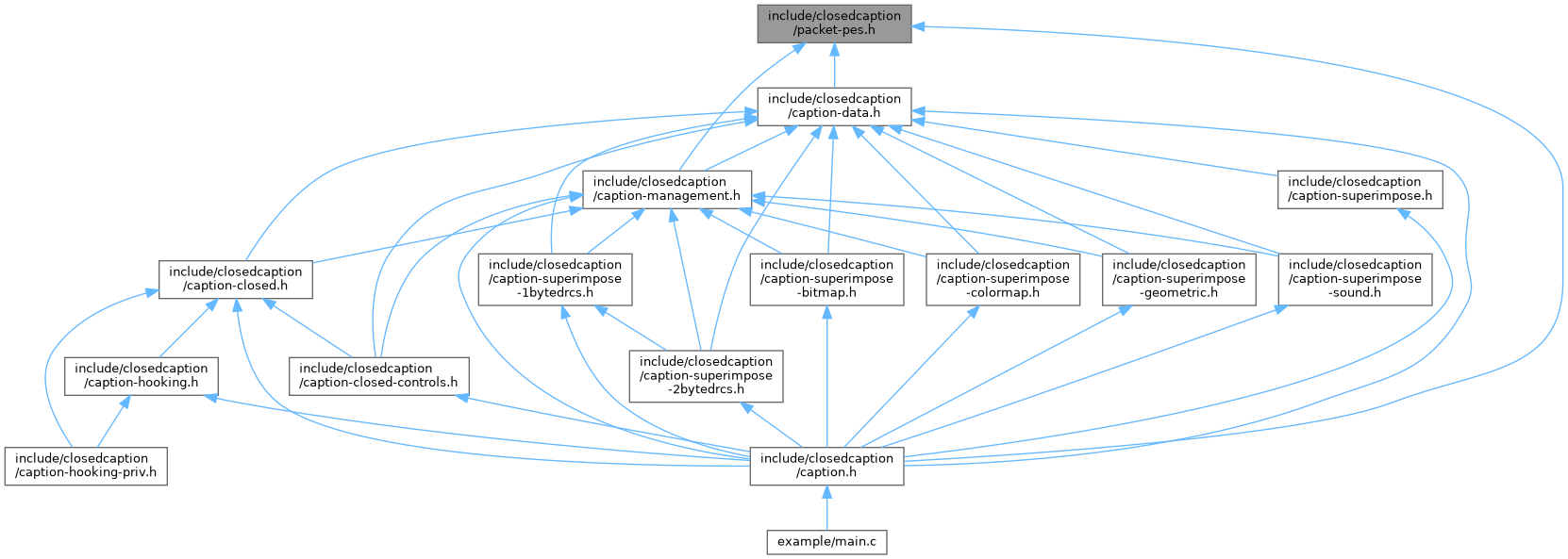

This graph shows which files directly or indirectly include this file:

Data Structures
struct	PES_pts_t

struct	PacketPES_s

struct	PacketPES_s::header

union	PacketPES_s::header::flags

struct	PacketPES_s::payload

Macros
#define	PACKET_PES_PREFIX 0x000001

#define	PACKET_PES_PRIVATE_STREAM 0xbd

PTS_DTS_flags field values
#define	PTS_is_NONE 0x00

#define	PTS_is_FORBIDEN 0x01

#define	PTS_is_ONLY_PTS 0x02

#define	PTS_is_BOTH 0x03

Typedefs
typedef struct PacketPES_s	PacketPES_t

Functions
bool	packet_pes_load (const uint8_t pack_raw, const size_t raw_len, PacketPES_t out)

void	packet_pes_set_pts (uint32_t ts, PES_pts_t pts)

Detailed Description

Reading the header of a caption PES packet.

Author: Jorge Pereira jpere.nosp@m.iran.nosp@m.@gmai.nosp@m.l.co.nosp@m.m

Date: Thu Aug 12 13:49:21 BRT 2010

ISDB-T captions are carried in PES packets with stream_id 0xBD (private_stream_1), in the "PES data packet" format of ARIB STD-B24, Volume 3, Chapter 5:

* [PES header][data_identifier][private_stream_id][PES_data_packet_header_length][...][data_group]
*

packet_pes_load() reads the header, the PTS and finds the data_group, which is then processed by caption_data_load().

Definition in file packet-pes.h.

Macro Definition Documentation

◆ PACKET_PES_PREFIX

#define PACKET_PES_PREFIX 0x000001

(24 bits) packet_start_code_prefix.

Definition at line 23 of file packet-pes.h.

◆ PACKET_PES_PRIVATE_STREAM

#define PACKET_PES_PRIVATE_STREAM 0xbd

stream_id of private_stream_1, used by captions.

Definition at line 24 of file packet-pes.h.

◆ PTS_is_NONE

#define PTS_is_NONE 0x00

No PTS and no DTS.

Definition at line 30 of file packet-pes.h.

◆ PTS_is_FORBIDEN

#define PTS_is_FORBIDEN 0x01

Value forbidden by the spec.

Definition at line 31 of file packet-pes.h.

◆ PTS_is_ONLY_PTS

#define PTS_is_ONLY_PTS 0x02

PTS only (Presentation Time Stamp).

Definition at line 32 of file packet-pes.h.

◆ PTS_is_BOTH

#define PTS_is_BOTH 0x03

PTS and DTS (Presentation/Decode Time Stamp).

Definition at line 33 of file packet-pes.h.

Typedef Documentation

◆ PacketPES_t

typedef struct PacketPES_s PacketPES_t

PES packet. See PacketPES_s.

Definition at line 48 of file packet-pes.h.

Function Documentation

◆ packet_pes_load()

bool packet_pes_load	(	const uint8_t *	pack_raw,
		const size_t	raw_len,
		PacketPES_t *	out
	)

Loads the header of a PES packet and finds the data_group.

Parameters

pack_raw	Whole PES packet, starting at the `packet_start_code_prefix` (00 00 01).
raw_len	Size of `pack_raw` in bytes.
out	Receives the loaded packet. The `payload` pointers point inside `pack_raw`.

Returns: TRUE if the packet is a valid PES with data.

◆ packet_pes_set_pts()

void packet_pes_set_pts	(	uint32_t *	ts,
		PES_pts_t *	pts
	)

Converts a PTS in 90 kHz units to hours, minutes and seconds.
